Spark Streaming之一:StreamingContext解析

1.0 前言

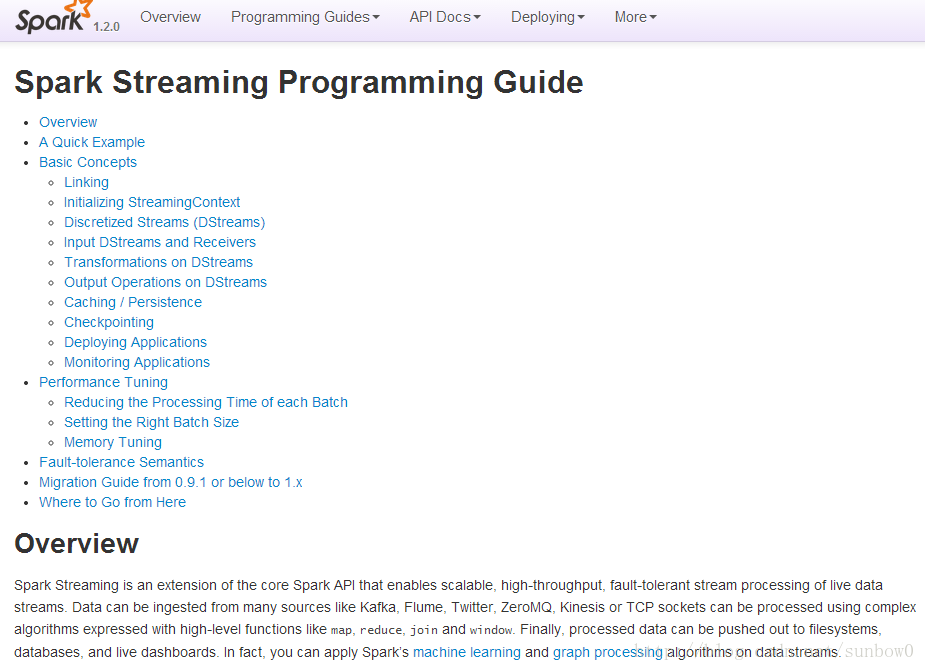

目前Spark Streaming编程指南地址:

http://spark.apache.org/docs/latest/streaming-programming-guide.html


1.1 创建StreamingContext对象

1.1.1通过SparkContext创建

源码如下:

def this (sparkContext:SparkContext, batchDuration: Duration) = {

this (sparkContext, null ,batchDuration)

}

第一参数为sparkContext对象,第二个参数为批次时间;

创建实例:

val ssc = new StreamingContext( sc , Seconds( 5 ))

1.1.2通过SparkConf创建

源码如下:

def this (conf:SparkConf, batchDuration: Duration) = {

this (StreamingContext.createNewSparkContext(conf), null ,batchDuration)

}

第一参数为SparkConf对象,第二个参数为批次时间;

创建实例:

val conf = new SparkConf().setAppName( "StreamTest" )

val ssc = new StreamingContext( conf ,Seconds( 5 ))

1.1.3通过SparkConf参数创建

源码如下:

def this (

master: String,

appName: String,

batchDuration: Duration,

sparkHome: String = null ,

jars: Seq[String] = Nil,

environment: Map[String, String] = Map()) = {

this (StreamingContext.createNewSparkContext(master,appName, sparkHome, jars, environment),

null , batchDuration)

}

第一参数为需要创建SparkConf对象的详细参数,master-spark地址,appName-对象名称,sparkHome- sparkHome环境变量,jars, environment,第二个参数为批次时间;

创建实例:

val ssc = newStreamingContext(“ spark://host:port”, "StreamTest", Seconds(5),      System.getenv("SPARK_HOME"),StreamingContext.jarOfClass(this.getClass))

1.1.4通过checkpointfile参数创建

源码如下:

def this (path:String, hadoopConf: Configuration) =

this ( null , CheckpointReader.read(path, new SparkConf(), hadoopConf).get, null )

第一参数为checkpoint file的路径,第二个参数为haoop的配置

源码如下:

def this (path:String) = this (path, new Configuration)

第一参数为checkpoint file的路径

1.2创建Dstream监听对象

1.2.1 fileStream

源码如下:

/**

* Create a input stream that monitors a Hadoop-compatible filesystem

* for new files and reads them using the given key-value types and inputformat.

* Files must be written to the monitored directory by "moving"them from another

* location within the same file system. File names starting with . areignored.

* @param directory HDFS directory to monitor for new file
