增量编码器与Arduino连接(读取编码器脉冲数)

https://mp.weixin.qq.com/s/e_25NUo5C_IhVck6dl3Tfg

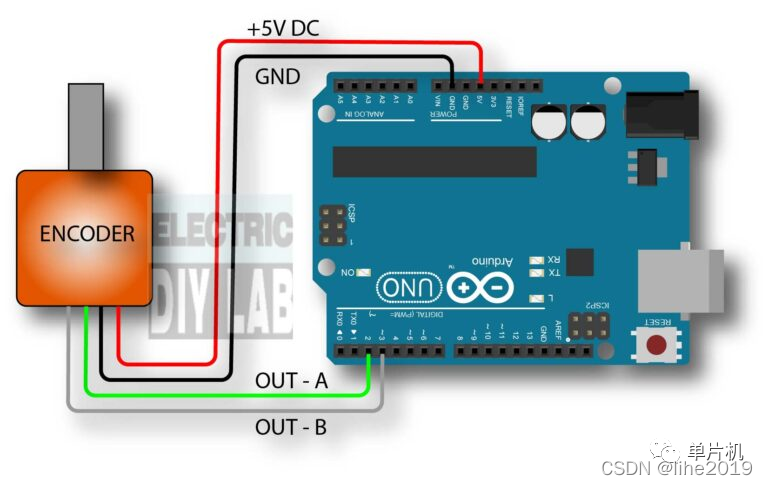

如下将编码器与Arduino连接:
A相：PIN 2（ arduino的中断器引脚）
B相：PIN 4（ arduino的中断器引脚）
电源：5V
地：GND
在这里，我们必须注意，编码器的A、B相输出必须仅连接到Aorduino的中断引脚。否则，arduino无法记录来自编码器的每个脉冲。

volatile long temp, encoderCounter =0; //This variable will increase or decreas depending on the rotation of encoder
int encoderPinA = 2; //interrupt pin 2
int encoderPinB = 3; //interrrupt pin 3

void setup() {
Serial.begin (115200);
pinMode (encoderPinA, INPUT);
pinMode (encoderPinB, INPUT);

//Setting up interrupt
//attach an interrupt to pin encoderPinA & encoderPinA of the Arduino, and when the pulse is in the CHANGE edge called the function doEncoderA()/doEncoderB()
attachInterrupt (digitalPinToInterrupt(encoderPinA), doEncoderA, CHANGE);//B rising pulse from encodenren activated ai1(). AttachInterrupt 1 isDigitalPin nr 3 on moust Arduino.
attachInterrupt (digitalPinToInterrupt(encoderPinB), doEncoderB, CHANGE);
}

void loop() {
  // Send the value of counter
if ( encoderCounter!= temp){
  Serial.println (encoderCounter);
  temp = encoderCounter;
}
}

void doEncoderA(){

  // look for a low-to-high on channel A
  if (digitalRead(encoderPinA) == HIGH) {
    // check channel B to see which way encoder is turning
    if (digitalRead(encoderPinB) == LOW) {
      encoderCounter = encoderCounter + 1;         // CW
    }
    else {
      encoderCounter = encoderCounter - 1;         // CCW
    }
  }
  else   // must be a high-to-low edge on channel A
  {
    // check channel B to see which way encoder is turning
    if (digitalRead(encoderPinB) == HIGH) {
      encoderCounter = encoderCounter + 1;          // CW
    }
    else {
      encoderCounter = encoderCounter - 1;          // CCW
    }
  }
  //Serial.println (encoder0Pos, DEC);
  // use for debugging - remember to comment out
}

void doEncoderB(){

  // look for a low-to-high on channel B
  if (digitalRead(encoderPinB) == HIGH) {
   // check channel A to see which way encoder is turning
    if (digitalRead(encoderPinA) == HIGH) {
      encoderCounter = encoderCounter + 1;         // CW
    }
    else {
      encoderCounter = encoderCounter - 1;         // CCW
    }
  }
  // Look for a high-to-low on channel B
  else {
    // check channel B to see which way encoder is turning
    if (digitalRead(encoderPinA) == LOW) {
      encoderCounter = encoderCounter + 1;          // CW
    }
    else {
      encoderCounter = encoderCounter - 1;          // CCW
    }
  }
}

将代码上传到arduino后，打开串行监视器

并旋转编码器轴，如果沿顺时针方向旋转编码器，则值会增加；如果沿逆时针方向旋转，则值会减小。

进一步通过：

double angle = encoderCounter*360/172032.0;//ppr=172032

可以获取电机转动角度
